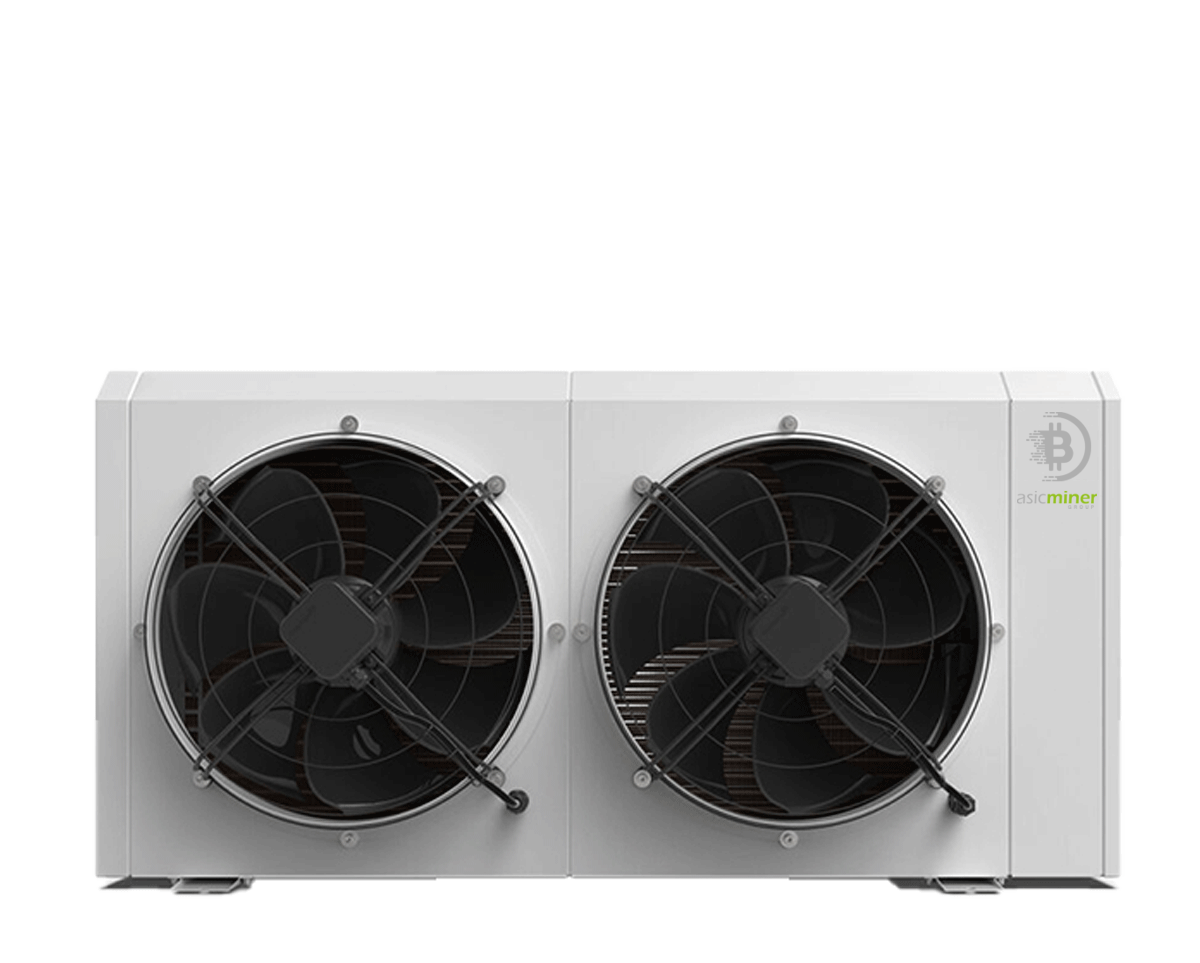

Dry Cooler ICP40

The ICP40 is a compact dry cooler developed specifically for single-tank immersion cooling installations. It combines the cooling unit, integrated pump and adaptive fan controller in one complete system, reducing installation complexity and the need for additional equipment.
The intelligent controller continuously adjusts fan speed according to the cooling demand, balancing cooling capacity, energy consumption and operating noise. Ambient-air heat rejection eliminates the need for evaporative water consumption.
The ICP40 is suitable for ASIC mining farms, data centres, high-performance computing installations and other applications that require stable cooling of a single immersion enclosure.

Technical specifications:

• Cooling capacity at 35°C: 40 kW
• Cooling capacity at 25°C: 45 kW
• Dimensions: 1,400 × 460 × 715 mm
• Fans: 2 × 500 mm
• Noise level: 58–62 dB(A)
• Maximum power consumption: 1.5 kW
• Power supply: 230–240 V, single phase, 50/60 Hz
• Connections: 1″ / DN25
• Control: Adaptive fan controller with temperature sensor
• Fluid temperature, inlet/outlet: 60/40°C
• Nominal flow rate: 1.7 m³/h
• Pressure drop: 0.34 bar
• Transport weight: 80 kg
• Recommended application: single immersion enclosure
